• 60,000 lb x 10 lb Capacity
• Pre calibrated and ready to use.
• Weight graduation in 10 lb increments!

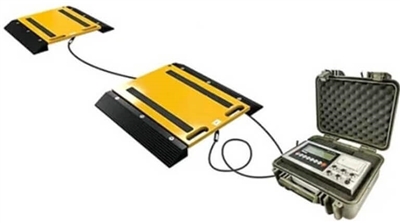

• Portable low profile scale pad with removable ramps. Our ramps provide an easier more gradual approach for drivers to drive onto the weighing surface!
• Ramps are removable and are secured with 2 bolts per ramps. Ramps fold over when stored or can be removed. (see video below)
• Size: 24" x 16" x 2" (each scale) (wide enough for dual tires). Weigh pad weight: 60 lbs per pad
• Indicator with internal rechargeable battery and built-in printer. A/C adapter included. Paper and ink refills available.
• 33' load cell cables
• View or Print per tire weight as well as total axle weight, and total vehicle weight.
• Fully electronic, no moving parts to wear out
• Accuracy: This scale can be off by 50 lb for every 10,000 lbs
• 100% overload protection
• Strong aluminum scale base
• Static Weighing Only. Does not weigh in motion
• 2 year Limited warranty on weigh pads

Indicator Features:

• Size 18 x 15 x 8
• Weight 15 lbs
• Character type LCD display
• Configurable A/D conversion rate
• Power for 24 350 ohm load cells
• Units: lb/kg
• View per pad weight, total axle weight, accumulation mode
• Printer with various printing formats
• Truck and cargo ID configureable
• Com ports: RS-232 x 1
• External AC/DC adapter, built in rechargeable battery
• Imported
