Tara Systems 20,000 x 5 lbs Hanging S Type Crane Scale - USA Made Indicator

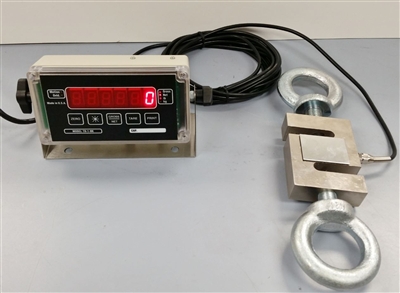

20,000 lb crane scale made in the usa



Our Price: $795.00


Product Code: TS-20000LB-TR-1-NK


Calibration Certificate*:


Power Supply :


Qty:
OVERVIEW


Full feature digital scale with USA made indicator. Easy connection to all strain-gauge load cell scale systems with internal terminal block (no soldering required) keeps connections dry. Complete digital calibration with full range push button zero and tare. Display modes for display of NET weight or GROSS weight. Motion detection and automatic zero maintenance. Printer & continuous data output, and optional 4-20 ma analog output is available.

  • 20,000 lb x 5 lb capacity
  • Calibrated on site and ready to use.
  • Made in U.S.A
  • Highly accurate
  • Read load weight at a safe distance with a 15' cable
  • Water-resistant corrosion proof enclosure with stainless steel adjustable stand/mount
  • complete digital calibration
  • Eye bolt to eye bolt dimensions: 17"
  • Eye bolt thread: 1 1/4-12
  • S-type dimensions: 7x5x2
  • Full range push button zerO
  • Full range auto-tare
  • Net/Gross display modes
  • Adjustable sample ratE
  • Adjustable motion detection
  • Auto-zero tracking
  • Data output of Gross/Tare/Net
  • All pushbutton controls
  • Data output for printer or computer
  • Super bright LED display
  • Optional LCD display
  • Simple no-soldering load cell input
  • Battery power pack available
  • Weigh light loads and heavy loads to a higher accuracy than other crane scales
  • 150% safe overload capacity
  • Power - 120v/110v or 12v options
  • Enclosure - ABS sealed 6.5”by 3.5”by 2.25”(without stand)
  • Load cell supply - 5 vdc with power for 6ea. 350 ohm cells
  • Load cell connection - 5 position terminal block (no soldering)
  • Resolution - 65,000 internal counts up to 50,000 displayed counts full scale (10,000 NTEP)
  • Accuracy - 0.01% of full scale
  • Linearity - 0.01% of full scale
  • Input - 0 to 3mv/volt
