60,000 lbs x 10 lbs 7' Truck Axle Scale with Portable Indicator & Printer Case - Harsh Weather Suitable - USA Made
Truck Axle Scales



Alternative Views:


Our Price: $6,800.00
Sale Price: $5,800.00
Ships Free UPS Ground and Freight Carrier


Product Code: TS-60KA-P
Qty:

OVERVIEW


Scale Dynasty's heavy duty truck axle scale system with enhanced weather protection is a complete, ready to use scale system for checking axle weights. Unlike other systems, Scale Dynasty truck axle scales are customized with an added layer of protection to prevent major system failure due to harsh weather environments such as rain, snow, dust, etc. Our truck scales are hardwired, complete with a sealed, watertight, wire housing box that protects the scale connections from damage due to moisture and other unfavorable weather events.
Need a different configuration? Please contact us, we can customize to work with your application.

SCALE FEATURES:

  • 60,000 lbs x 10 lbs Capacity per axle or axle group

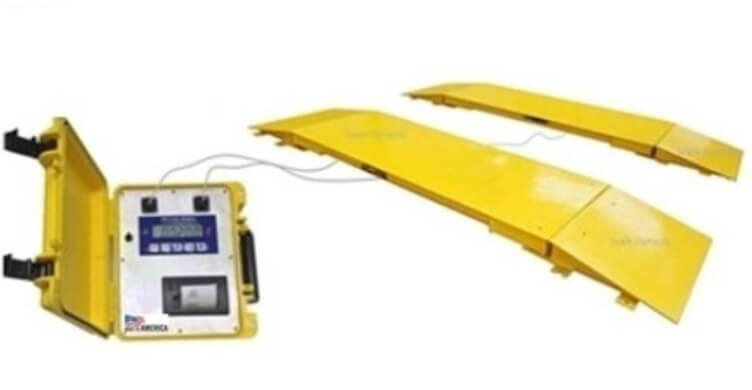

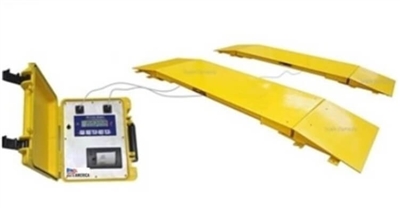

  • Two scale platforms (Total 60,000 lb per axle) + four ramps set
  • Platform Size: 84" (L) x 30" (W) x 5.75" (H) (each scale). 12' platforms available. Ramp Length: 24"
  • 40' cables from each platform.
  • Watertight sealed wired housing box to protect connections from outdoor environments. This scale arrives ready to use upon arrival.

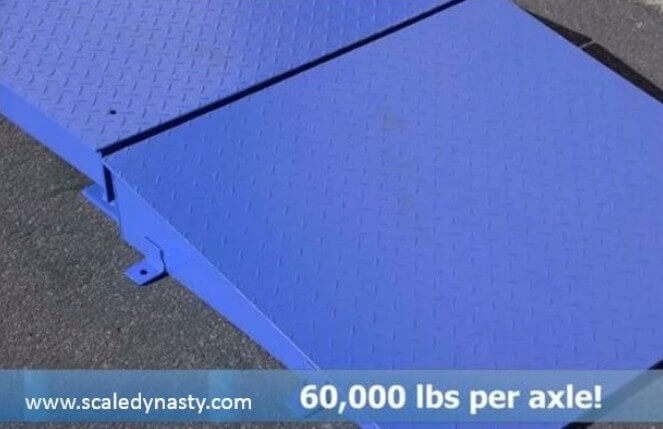

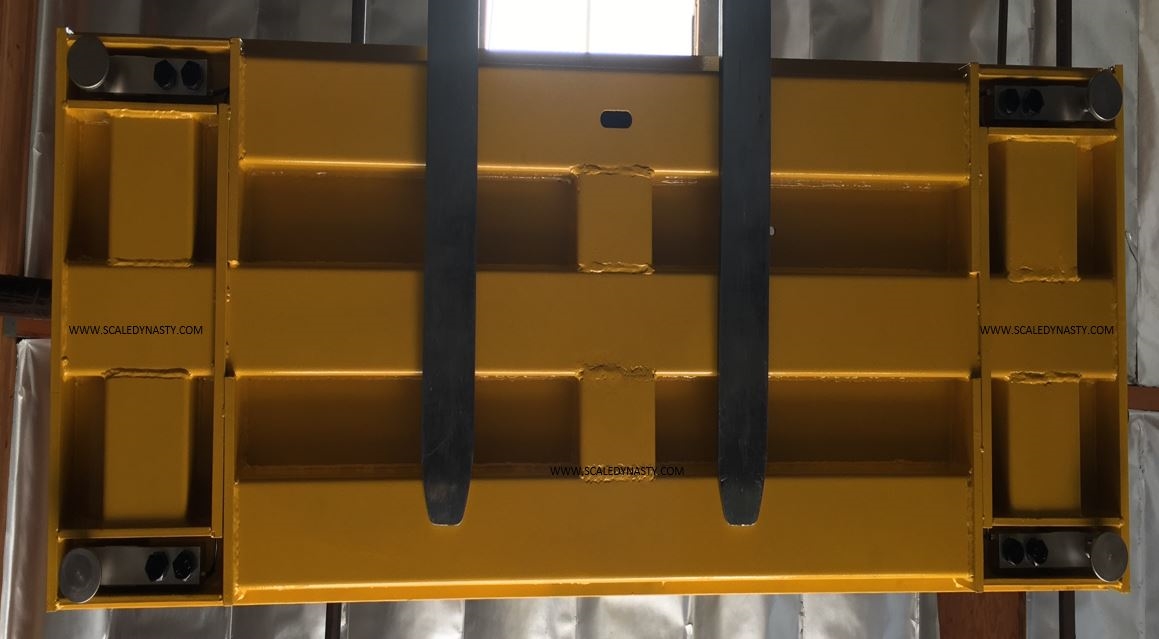

  • Structural steel 8" channel iron and a 1/4" diamond plated non-slip steel deck plate
  • High Accuracy

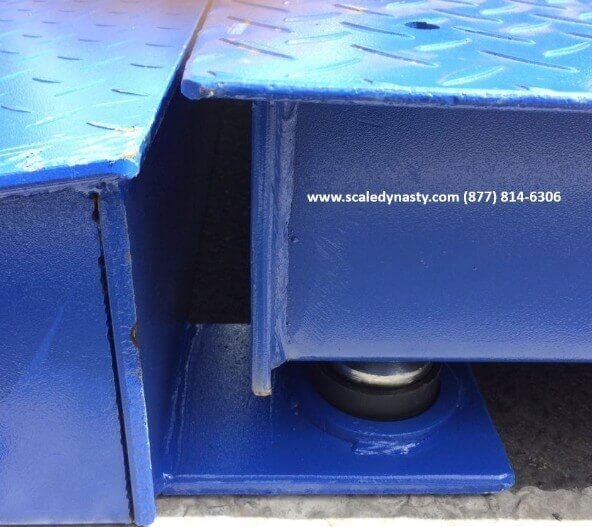

  • 4 Large envelop shear beam load cells per platform
  • Stainless steel NEMA 4X junction box
  • 4 Adjustable swivel steel feet per platform
  • Forklift portable
  • Accumulation Mode Totalizes Weights of All Axle
  • On/Off Ramps Include Bolting Tabs For Fixed Installations
  • Calibrate done at our facility by certified scale technicians before shipping.
  • 150% overload capacity and 100% end load capacity
  • Can be used for above ground or flush with ground applications.
  • Simple set-up. Place the scale on any flat hard surface.
  • 2 year manufacture warranty
  • Not legal for trade

STANDARD INDICATOR:

  • AX-2 portable indicator. American made that provides years of trouble free operation compared to imports.
  • Indicator built into NEMA watertight case with built in thermal printer
  • Built in internal rechargeable battery or can use 110v power with supplied power adapter
  • Prints each axle weight and accumulates total.
  • LB / KG Conversion
  • TARE (weight on scale via TARE key)
  • 1 year Manufacture Warranty
