Home > Axle Scales >

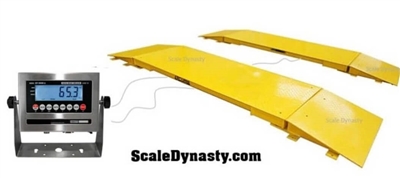

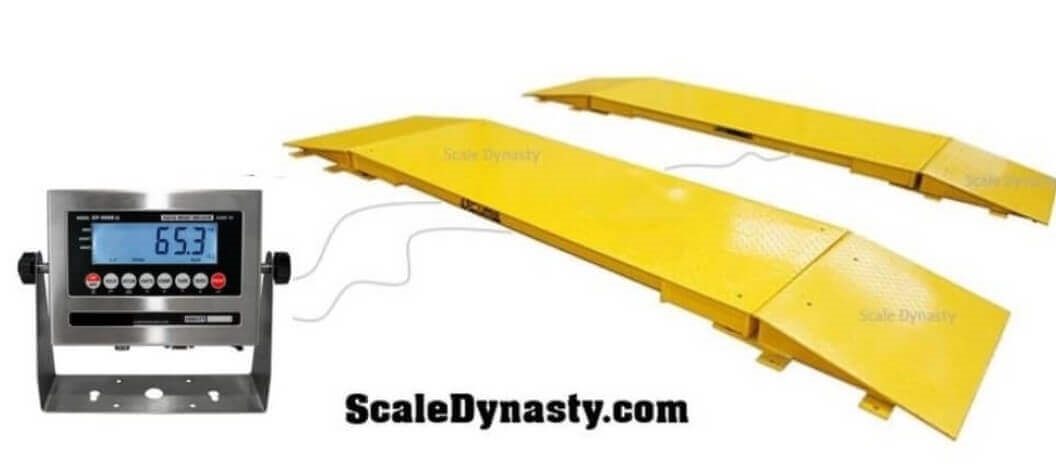

60,000 lbs x 10 lbs - 7' Truck Axle Scale with Indicator
60,000 lb Truck Axle Scale



Alternative Views:


Our Price: $5,900.00
Sale Price: $4,995.00
Ships Free UPS and Freight


Product Code: O-923


Indicator Stand OP-403:

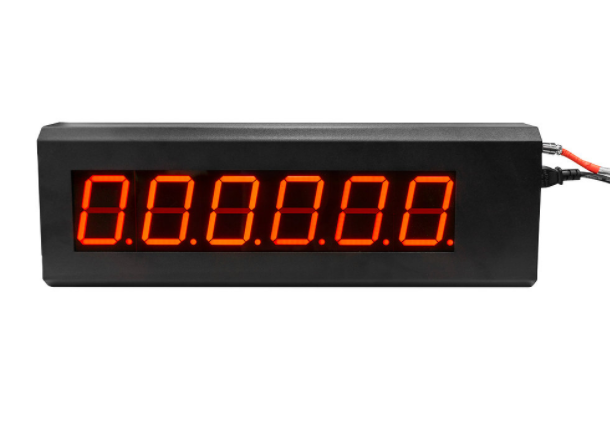

Scoreboard:


Thermal Printer - OP-412T:


Qty:
OVERVIEW


Heavy duty truck axle scale system with a low profile and large weighing surface that will accommodate multiple axle trucks. This system can be used for above ground or flush with ground applications.

We are a manufacturing company and make many different types of indicators/weight read outs. Please contact us with any questions, to see how we can customize to work with your application.

We also carry a complete weighing system that is automatic and operator free. Click HERE

*Scale color may vary from picture

SCALE FEATURES:

  • 60,000 lbs x 10 lbs Capacity
  • Two scale platforms (Total 60,000 lb per axle) + four ramps that are equipped with bolting tabs for fixed installations.
  • Size: 84" (L) x 30" (W) x 5.75" (H) (each scale)
  • 150% overload capacity. 100% end load capacity. Diamond plated non-slip steel.
  • Constructed of structural steel 8" channel iron and a 1/4" deck plate.
  • Threaded Top Plate
  • High Accuracy
  • Four Premium Watertight Alloy Steel Nickel Plated Loadcells.
  • Stainless steel junction box
  • 40' quick connect cables from each platform
  • Adjustable swivel steel feet
  • Accumulation Mode Totalizes Weights of All Axle
  • Heavy Duty Steel I-Beam Construction
  • Forklift portable
  • Factory Calibrated
  • One-year limited warranty on electronics
  • Two-year limited warranty on platforms

STANDARD INDICATOR:

  • Back-lit LCD Display
  • Stainless Steel casing
  • AC adapter included and internal rechargeable battery
  • Multiple weighing units: (lb/kg/g/oz/lb:oz)
  • Gross/Tare/Pre-Set Tare/Zero
  • Multiple Hold functions
  • Count weighing
  • Accumulation weighing

OPTIONS:

  • Printer
  • Indicator Stand

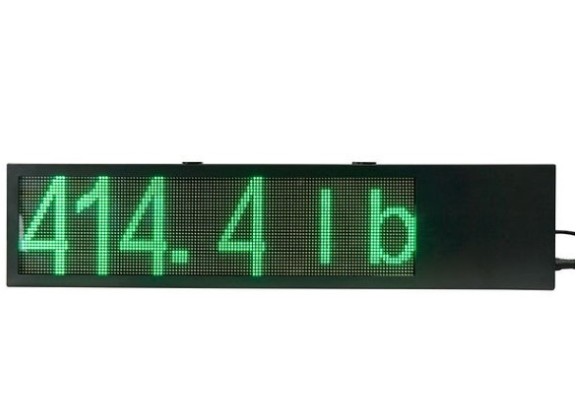

  • Remote Display
