60,000 lbs x 10 lbs - 7' Truck Axle Scale with "Super Bright" LED Remote Indicator - Harsh Weather Suitable - USA Made

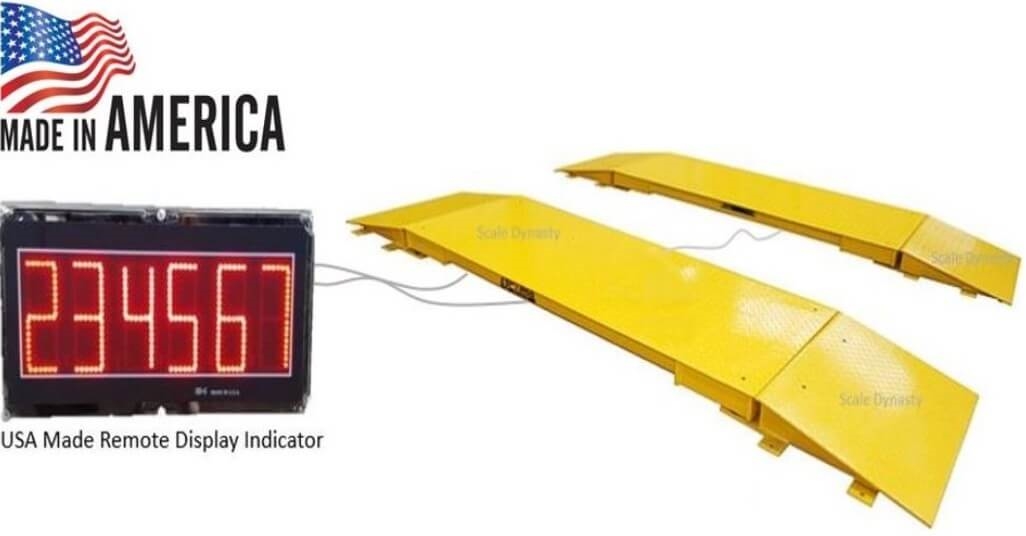

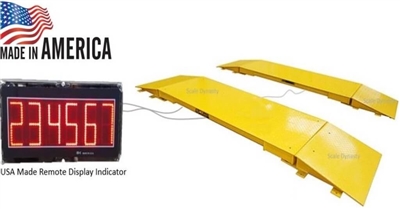

60,000 lb Axle Truck Scale with 6" LED Display

Alternative Views:
Our Price: $6,850.00
Sale Price: $6,500.00
Savings: $350.00
Ships Free UPS Ground and Freight Carrier


Free Shipping
Product Code: TS-60K-SU6
Qty:

OVERVIEW PRODUCT VIDEOS

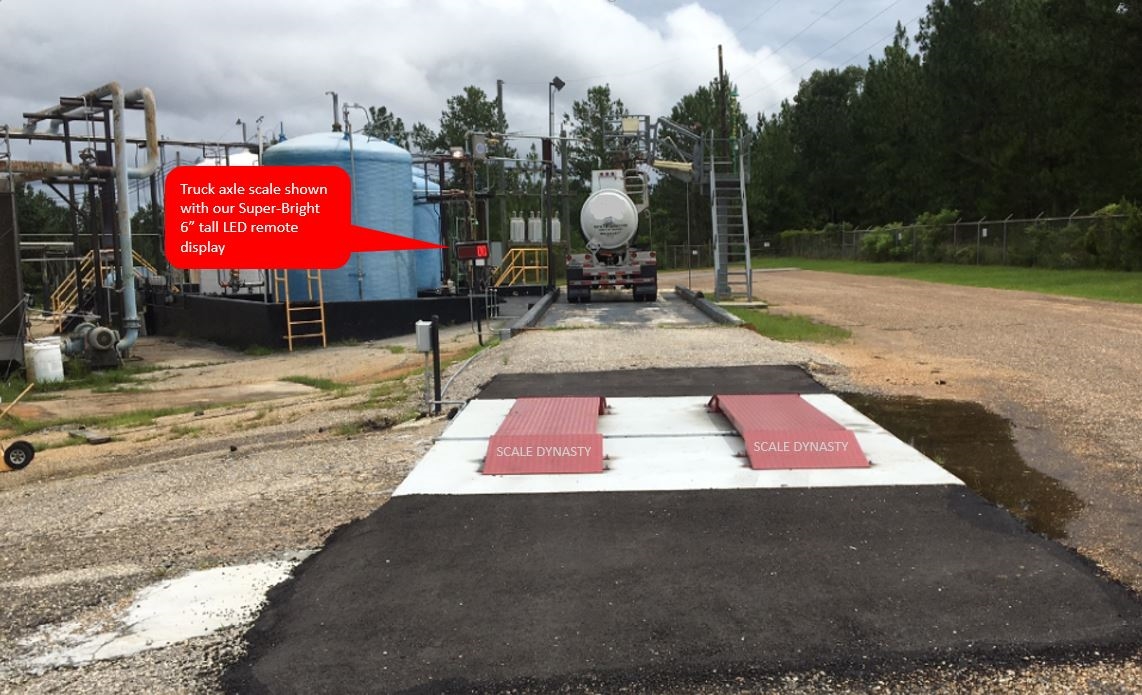

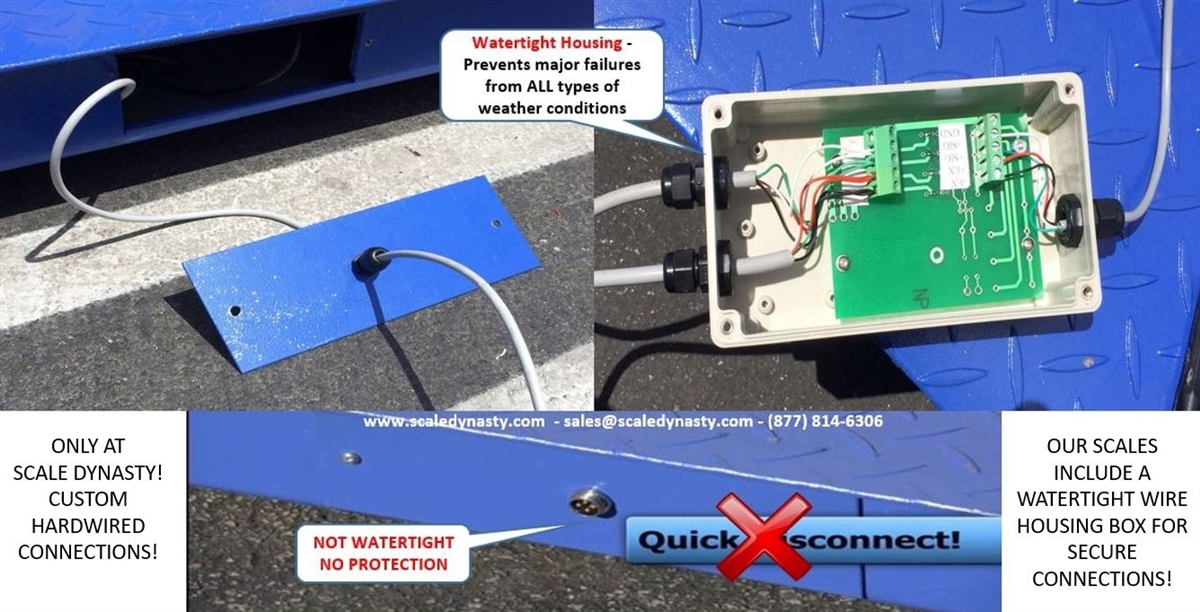

Scale Dynasty's heavy duty truck axle scale system with a large remote display indicator that is suitable for outdoor use. With enhanced weather protection this is a complete, ready to use truck scale system for axle weighing. Unlike other systems, Scale Dynasty truck axle scales are customized with an added layer of protection to prevent major system failure due to harsh weather environments such as rain, snow, dust, etc. Our truck scales are hardwired, complete with a sealed, watertight, wire housing box that protects the scale connections from damage due to moisture and other unfavorable weather events.

Need a different configuration? Please contact us, we can customize to work with your application.

SCALE FEATURES:

  • 60,000 lbs x 10 lbs Capacity per axle or axle group
  • Two scale platforms (Total 60,000 lb per axle) + four ramps set
  • Platform Size: 84" (L) x 29.5" (W) x 5.75" (H) (each scale). Ramp: 24"
  • Watertight American made indicator that provides years of trouble free operation compared to imports
  • TR-1-NK-SU6 Remote display indicator with 6" tall "Super bright" LED digits visible up to 200' away. (110v). Wireless options available
  • 40' cable from each platform to watertight wire housing box, then 100' cable from wire housing box to remote display indicator
  • Structural steel 8" channel iron and a 1/4" diamond plated non-slip steel deck plate
  • High Accuracy
  • 4 Large envelop shear beam load cells per platform
  • 1 Stainless steel NEMA 4X junction box per platform
  • 4 Adjustable swivel steel feet per platform
  • Forklift portable
  • On/Off Ramps Include Bolting Tabs For Fixed Installations
  • Calibration performed by our certified scale technicians prior to shipment
  • 150% overload capacity and 100% end load capacity
  • Can be used for above ground or flush with ground applications.
  • Simple set-up. Place the scale on any flat hard surface
  • Manufacture warranty
  • Not legal for trade

REMOTE INDICATOR:

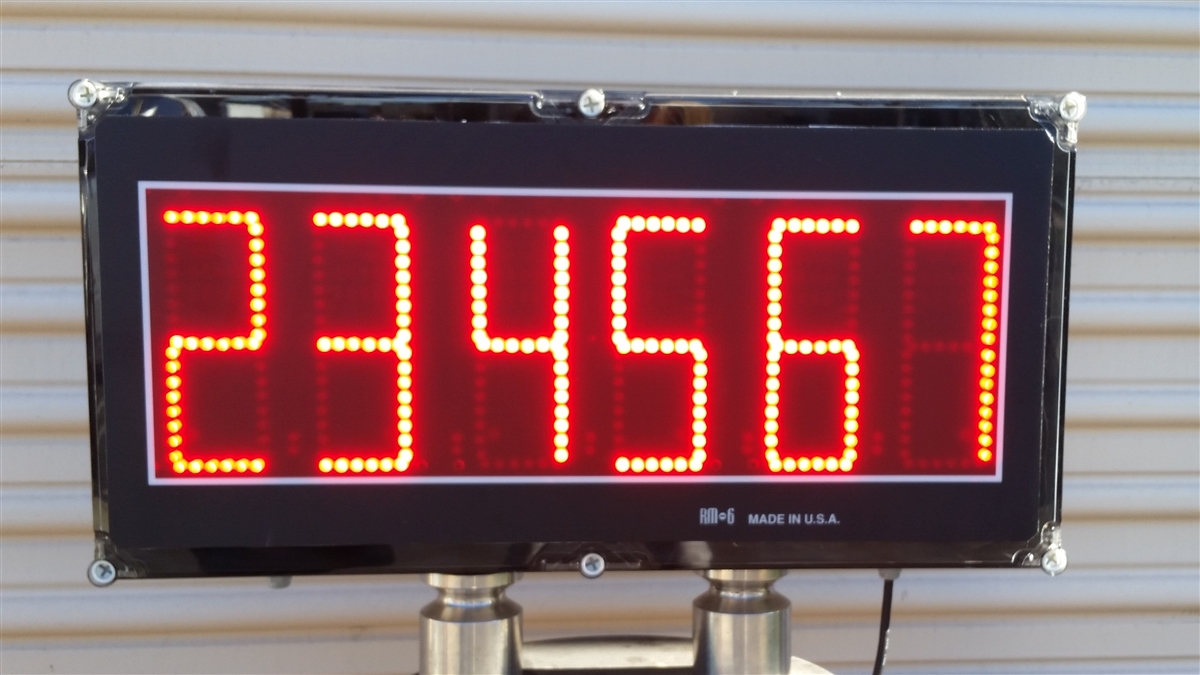

  • Large remote display indicator that has 6" tall Superbright LED digits seen up to 150 feet away. Sealed operational buttons.
  • NEMA 4X enclosure for harsh environments
  • 110v power
  • 100 Feet of cable from the wiring box to the indicator
  • Motion detection and automatic zero maintenance
  • All push button controls
  • 1 Manufacture warranty
