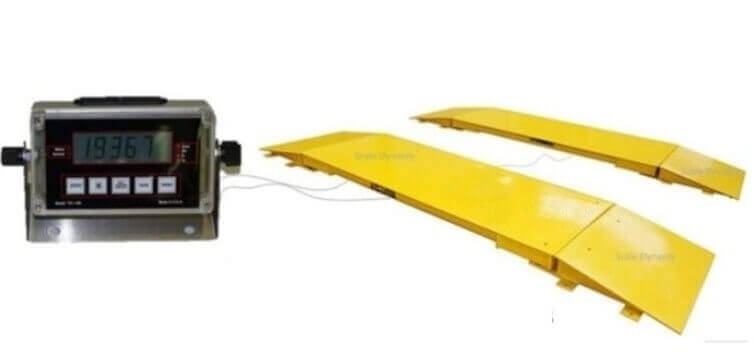

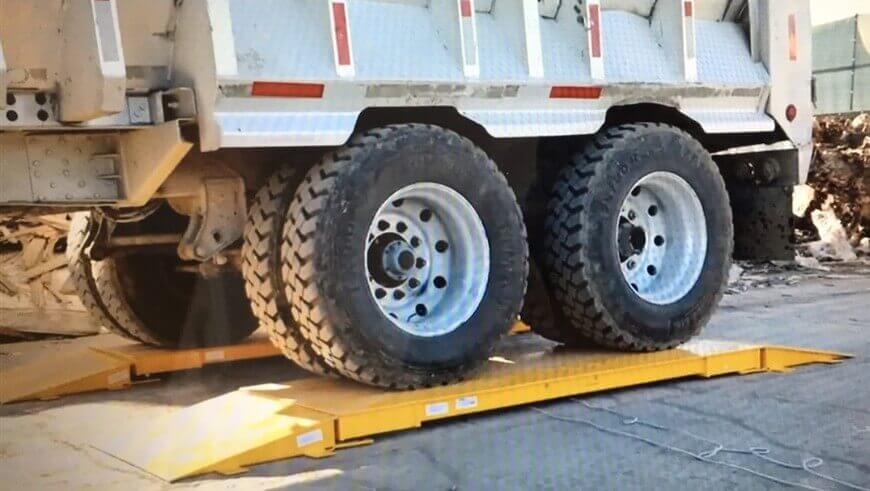

Scale Dynasty's heavy duty truck axle scale model TS-60KA is equipped with enhanced weather protection. This is a complete, ready to use axle scale system. Unlike other systems, Scale Dynasty truck axle scales are customized with an added layer of protection to prevent major system failure due to harsh weather environments such as rain, snow, dust, etc. Our truck axle scales are hardwired, complete with a sealed, watertight, wire housing box that protects the scale connections from damage due to moisture and other unfavorable weather events.
Need a different configuration? Please contact us, we can customize to work with your application.
SCALE FEATURES:
- 60,000 lbs x 10 lbs Capacity per axle or axle group
- Two scale platforms (Total 60,000 lb per axle) + four ramps set
- Platform Size: 84" (L) x 30" (W) x 5.75" (H) (each scale). Ramp Length: 24"
- ***12' platforms available.

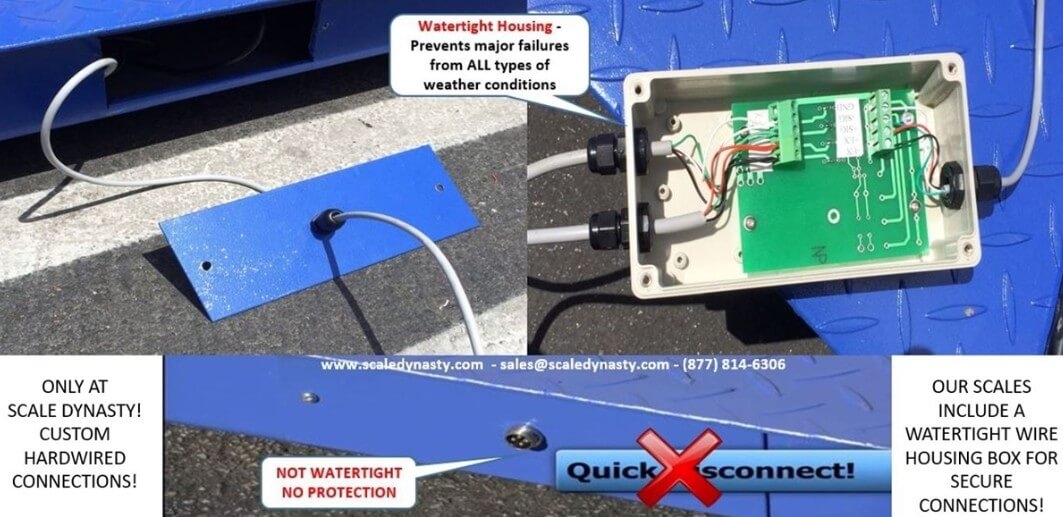

- Watertight sealed wired housing box to protect connections from outdoor environments. This scale arrives ready to use upon arrival.
- 100' cable from wire box. This allows the indicator to be placed further away from the scale and if needed, under a sheltered location.

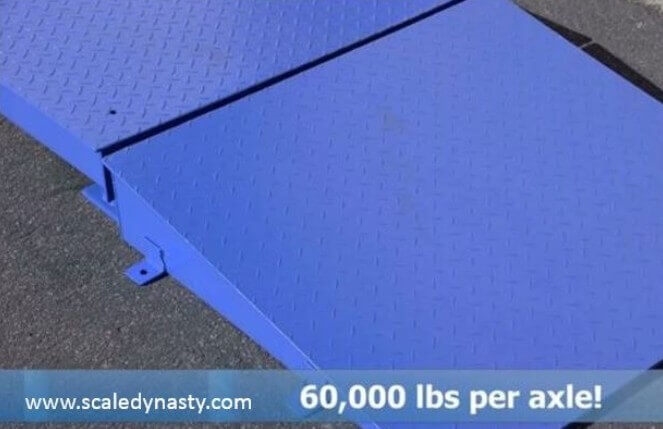

- Structural steel 8" channel iron and a 1/4" diamond plated non-slip steel deck plate
- High Accuracy

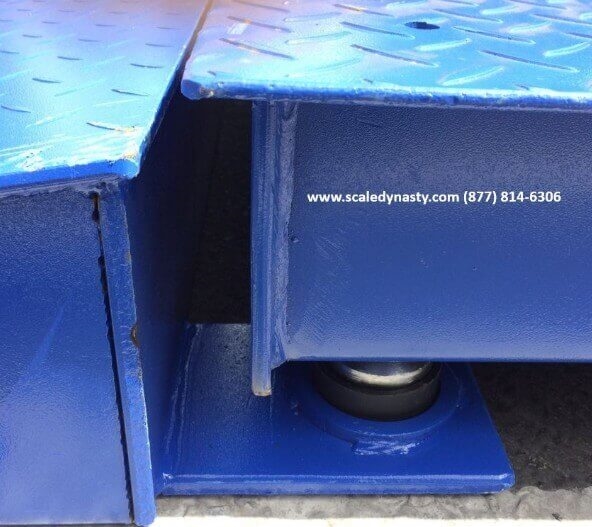

- 4 Large envelop shear beam load cells per platform
- Stainless steel NEMA 4X junction box
- 4 Adjustable swivel steel feet per platform
- Forklift portable
- Accumulation Mode Totalizes Weights of All Axle
- On/Off Ramps Include Bolting Tabs For Fixed Installations
- On-site Calibration by certified scale technicians.
- 150% overload capacity and 100% end load capacity
- Simple set-up. Place the scale on any flat hard surface
- 2 year manufacturer's warranty
- Not legal for trade
STANDARD INDICATOR:
- Easy to read LED Display in bright sun
- LB / KG Conversion
- TARE (weight on scale via TARE key)
- 110v power (battery option available for $150.00)
- Tilt Adjustable Wall or Desk Mount
- Model TR-1NK
- 1 year warranty
OPTIONS:

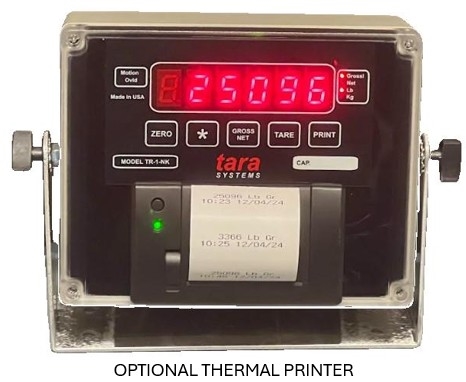

- Thermal printer

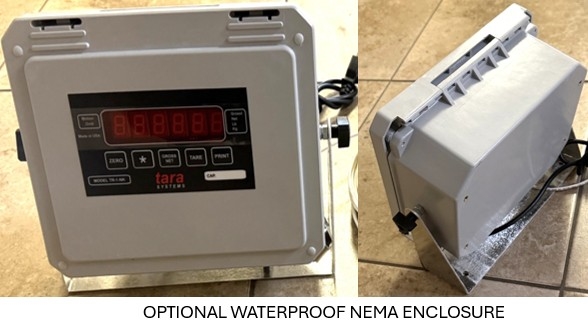

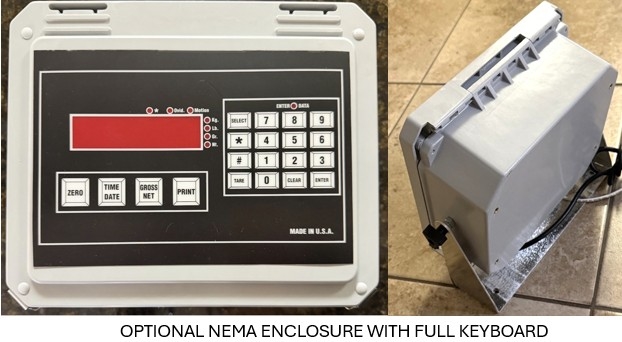

- Fiberglass NEMA waterproof enclosures
- Ticket printer
- Label printer
- Remote display
We also carry a complete weighing system that is automatic and operator-free. Click here
***Scale color may vary
|
|
|
