2,000 lb x 0.5 lb Heavy Duty Animal Scale with Cage and Wheels

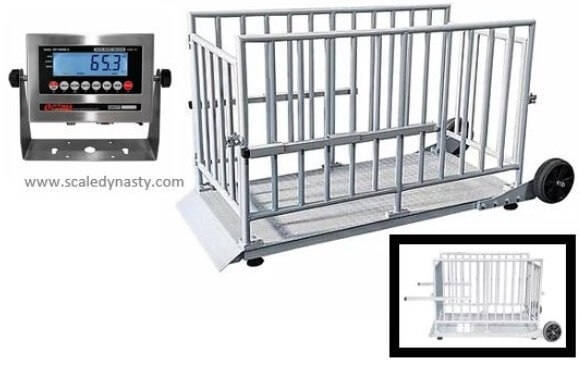

Animal scale with cage

Alternative Views:

Our Price: $1,995.00
Sale Price: $1,785.00
Ships Free Freight Shipping

: Usually Ships in 2 to 3 Weeks
Product Code: OP-930-6030

Delivery Options:

Indicator Stand OP-403:


Thermal Printer - OP-412-T :

This heavy-duty animal scale is great for weighing hogs, calf, sheep, pigs or any animal under 2,000 lbs that needs weighing. Heavily constructed and calibrated before shipping, this complete cattle weighing scale with surrounding cage will keep your animals safely contained during the weighing process. Complete calibrated scale with stainless steel indicator.

  • 2,000 lb x 0.5 lb
  • Size: 68" (L) x 30" (W) x 5" H - Includes ramped ends
  • Cage Height is 37"
  • Built in cage all around
  • Comes with swivel casters for easy moving
  • Equipped with a hand wrench for raising and lowering
  • Casters can be removed when needed
  • Heavy Duty to accommodate more than one animal at a time
  • Factory Calibrated
  • Overload Protection
  • Weight 380 lbs
  • ****Scale will arrive packaged as shown in the 3rd picture
Shipping terms:
If you do not have a receiving dock, forklift, or other type of machine to offload the scale, please choose lift gate option above. Additional charges will apply if a lift gate is required once order has shipped.

Indicator Specs:

  • Stainless Steel enclosure
  • Motion sensing technology for accurate animal weighing
  • 1” LCD display with back light
  • Units: (lb, kg, oz, lb:oz, g)
  • Gross/Tare/Pre-Set Tare/Zero
  • Multiple Hold functions
  • Count weighing
  • Accumulation Mode to Totalize Weights
  • Overload / Under load alarm
  • Power saving mode
  • Automatic date and time update
  • Ability to modify gravity based on different geographical locations
  • 100% manual zero range setting
  • Automatic error warning alarm
  • Splash proof keyboard and display
  • Connects to a remote display
  • NTEP approved for 5,000 divisions
  • Mounting bracket and hardware (included)
  • Operates on 110V AC adapter (included)
  • Multi-point calibration (up to 5 points)
  • Full Duplex RS-232 Serial Port
  • Drives up to 6 350Ω load cells
  • 1 year limited warranty

Data logging software

  • Easy to use single screen interface without compromising functionality
  • Remote control of the indicator from the same windows screen (Zero, Tare, Gross, Unit)
  • Very easy learning curve
  • Single window interface eliminates confusion in navigating through different menus, screens, etc.
  • Log, save, and print reading with a click of a button
  • Simple spreadsheet embedded in the software so that user without a spreadsheet program can also enjoy a better data logging experience
  • Saved log data can be imported to other spreadsheet program such as excel
  • Spreadsheet headers can be changed to fit your application
  • Software calibration can be done by entering a multiplication factor
  • Wired - Connect with a serial cable between computer's serial port and indicator's RS232 port (not included)
  • Wireless - connect with wireless module


  • Connects your OP-900 series indicator's RS232 port to this popular OP-910 Score Board External Big Display.
  • Power: 110-220v
  • Provides a clear big 3" or 5" LED display
  • Does not contain indicator circuit (OP-900 or OP-901 needed)
  • Wireless option available (OPPL-WS-3000). Will transmit data wireless to indicator.
  • OP-910-3: 3 in - 21.5"(W) x 7"(H) x 2.5"(D)
  • OP-910-5: 5 in - 31"(W) x 10"(H) x 7.5"(D)

Thermal Printer:

  • Basic printer to print weights
  • Easy operation, small profile
  • Comes with serial cable, 8.5V AC adapter, and roll of paper

Indicator Stand:

  • Works with included indicator
  • All stainless steel
  • Includes base, column, bracket, and hardware
  • 41" tall
