60,000 lbs x 10 lbs - 7' Truck Axle Scale with Truck In/Out ID Memory - Made in USA - Harsh Weather Suitable

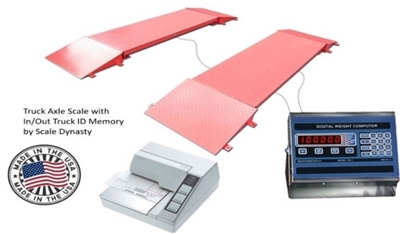

Truck Axle scale with in/out memory id



Alternative Views:


Our Price: $7,600.00
Sale Price: $6,600.00
Ships Free Ground UPS and Freight Carrier


Product Code: TS-60K-ID
Qty:

OVERVIEW

Portable truck axle scale paired with our American made indicator model TR-1. This truck scale allows the driver to weigh in and out with an assigned ID that is printed on the ticket.
This axle scale offers a large weighing surface and low profile for checking vehicle weight. This truck scale system can be used for both above ground or flush with ground applications. Not Legal for Trade

Includes:
  • 7' Weighing platforms & ramps
  • American made indicator
  • Ticket Printer
  • All wiring plus a watertight wire housing box
  • Calibrated and ready to use
  • Upgrade to 12' platforms (144" x 30" x 5.75") Scale capacity 80,000 lbs per axle

This truck axle scale offers the ability to weigh trucks with our in/out truck ID memory feature. This allows the accumulations of weights to be totalized and used in the in/out weighing process. Place a ticket in the printer, when the vehicle is on the scale and the weight is stable, press the "ID" button until the data lamp lights, leave the display showing zero, and press the enter button. The printer will print the inbound weight, ID number that is assigned as well as time and date. The data will be stored in memory for future recall when weighing out. Upon weigh out, place the ticket that matches the vehicle from the weigh-in process in the printer. Follow the remaining steps in the manual to print the gross, tare, and net weights of the truck.

SYSTEM FEATURES:

  • 60,000 lbs x 10 lbs Capacity
  • USA made indicator - Model TR-1 - 110v power
  • Ticket printer - prints truck weights, truck ID, Time & date
  • Two scale platforms (Total 60,000 lb per axle) + four ramps set
  • Platform Size: 84" (L) x 30" (W) x 5.75" (H) (each scale)
  • Ramp Length: 24"
  • All Components are Watertight for Outdoor Environments
  • 100' cable from platform to indicator
  • Heavy Duty Steel I-Beam Construction
  • High Accuracy
  • Environmentally sealed electronic shear beam load cells
  • NEMA 4x Stainless steel junction box
  • Adjustable swivel steel feet
  • Forklift portable
  • 150% overload capacity
  • Designed and Engineered for Vehicle Axle Weighing
  • Constructed of structural steel 8" channel iron and a 1/4" diamond plated non-slip steel deck plate
  • On/Off Ramps Include Bolting Tabs For Fixed Installations
  • Calibrated by our certified scale technicians before scale is shipped
  • Simple set-up. Place the scale on any flat hard surface: asphalt, concrete, compact dirt, etc.
  • Manufacture warranty

STANDARD INDICATOR:

  • Model TR-1 indicator with axle weight accumulation
  • Choose between manual truck ID assignment or automatic truck ID assignment
  • Optional job/ID feature
  • Easy Operation
  • Keys: Zero, Time date, Gross Net, Print, tare, set point, ID Function
  • 110v power
  • Tilt Adjustable Wall or Desk Mount
  • Proudly made in the USA
  • Manufacture Warranty

Need a different configuration? Please contact us, we can customize to work with your application.

*Scale color may vary from picture.
