60,000 lbs x 10 lbs - 7' Truck Axle Scale with Indicator - "Superbright" LED Remote Display and Thermal Printer - Harsh Weather Suitable - USA Made

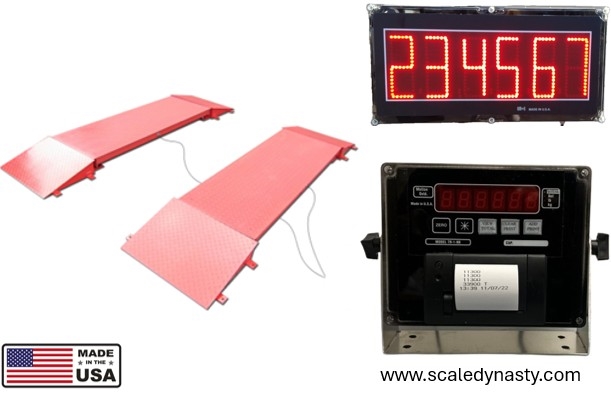

Truck Axle scale with indicator, display and printer

Alternative Views:


Our Price: $7,900.00
Sale Price: $7,100.00
Ships Free Ground UPS and Freight Carrier


Free Shipping
Product Code: TS-60K-NA
Qty:

OVERVIEW

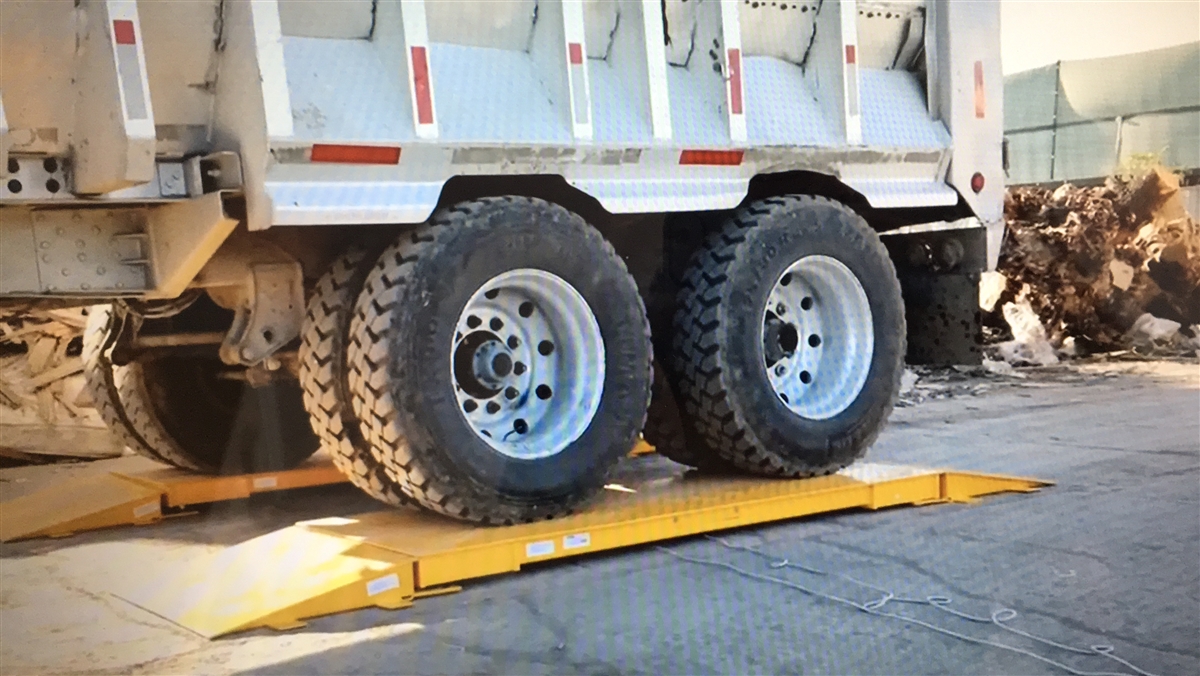

Scale Dynasty's heavy duty truck axle scale system with enhanced weather protection is a complete, ready to use scale system for axle weighing. Unlike other systems, Scale Dynasty truck axle scales are customized with an added layer of protection to prevent major system failure due to harsh weather environments such as rain, snow, dust, etc. Our truck scales are hardwired, complete with a sealed, watertight, wire housing box that protects the scale connections from damage due to moisture and other unfavorable weather events.
Need a different configuration? Please contact us, we can customize to work with your application.

SYSTEM FEATURES:

  • 60,000 lbs x 10 lbs Capacity per axle or axle group
  • Two scale platforms (Total 60,000 lb per axle) + four ramps set
  • Platform Size: 84" (L) x 30" (W) x 5.75" (H) (each scale). 12' Platforms available.
  • Ramp Length: 24"
  • TR-1-NK Weight indicator - 110v power
  • RM-3 LED remote display. 3" Tall LED digits. Viewable up to 200' away. Sealed enclosure with 100' cable to indicator. Powered by 110V.

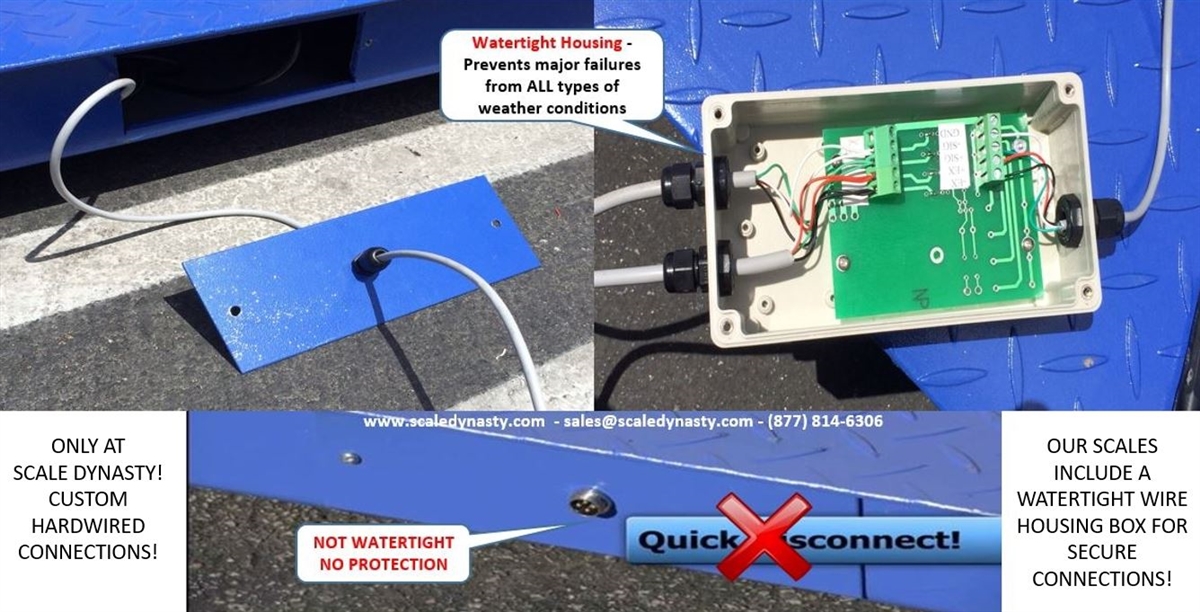

  • Watertight wire housing box. Sealed to protect cable connections for continuous outdoor use.
  • Thermal roll paper printer. (110v) Ticket and label printers available.
  • 100' cable from indicator to remote display
  • Heavy Duty Steel I-Beam Construction. Constructed of structural steel 8" channel iron and a 1/4" diamond plated non-slip steel deck plate
  • Large envelop shear beam load cells environmentally sealed.
  • On/Off Ramps Include Bolting Tabs For Fixed Installations
  • Stainless steel NEMA 4x junction box
  • Adjustable swivel steel feet
  • Simple set-up. Place on any flat, hard surface.
  • High Accuracy
  • Forklift portable
  • Calibrated by our certified scale technicians
  • Manufacture warranty
  • Not legal for trade

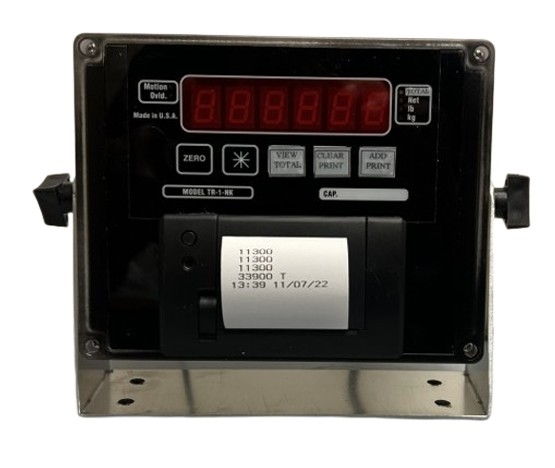

STANDARD INDICATOR:

  • Easy to read LED Display in bright sun
  • Accumulation Mode Totalizes Weights of All Axle
  • Easy Operation
  • LB / KG Conversion
  • TARE (weight on scale via TARE key)
  • 110v power
  • Tilt Adjustable Wall or Desk Mount
  • Proudly made in the USA

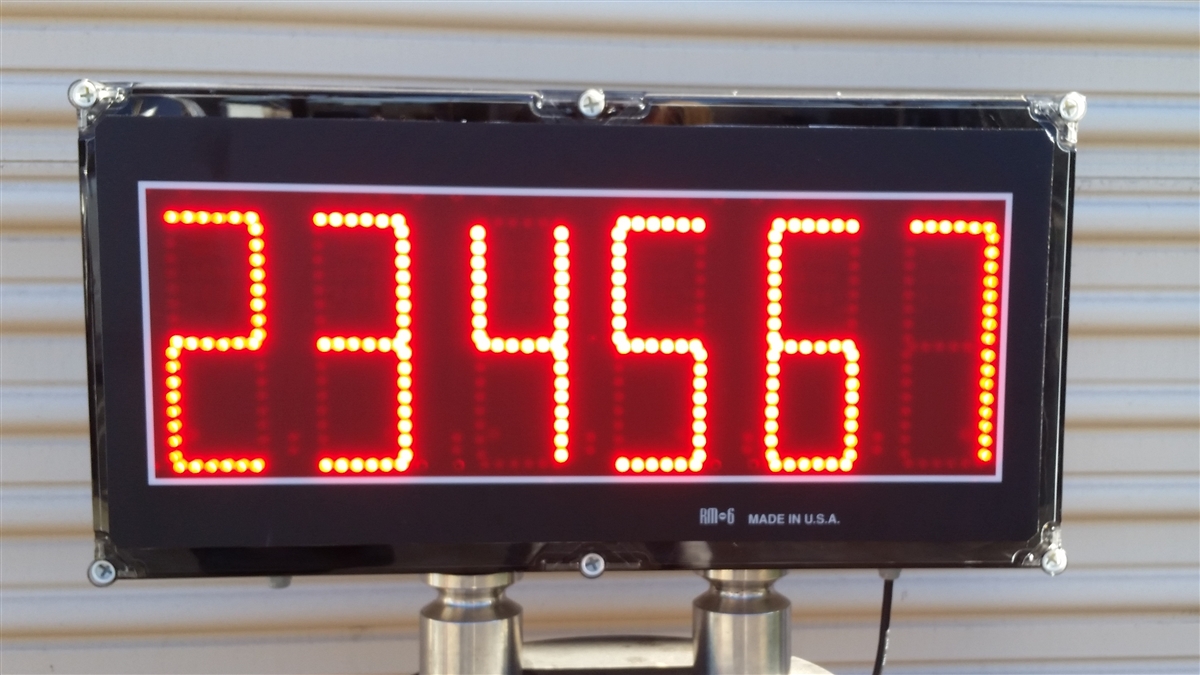

REMOTE DISPLAY
  • 3" "tall superbright" LED digits
  • Sealed for continuous outdoor use
  • 100" cable from indicator to display.
  • 110v power
  • Proudly Made in the USA
Thermal Printer:
  • Prints each axle weight, total truck weight and time and date
  • 110v power

Need a different configuration? Please contact us, we can customize to work with your application.

*Scale color may vary from picture.
